Sand Blast Nozzles

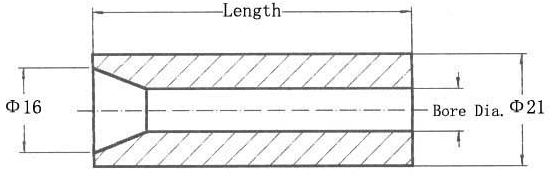

1.Sand Blast Straight Bore Nozzle Inserts
![](http://www.idealspray.com/UploadFiles/20090910091849554.gif)
Part Number |
Bore Diameter |
Length |
HY-19840B |
5mm-10mm |
35mm |
HY-19850B |
5mm-10mm |
60mm |
HY-19860B |
5mm-10mm |
82mm |
HY-19870B |
5mm-10mm |
100mm |

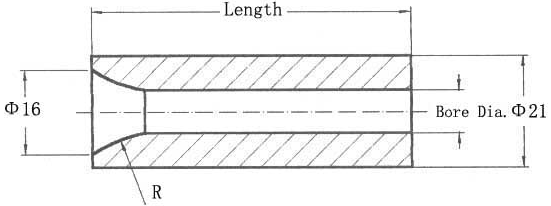

Part Number |
Bore Diameter |
Length |
HY-19841B |
5mm-10mm |
35mm |
HY-19851B |
5mm-10mm |
60mm |
HY-19861B |
5mm-10mm |
82mm |
HY-19871B |
5mm-10mm |
100mm |
Other specifications are available upon request. Top

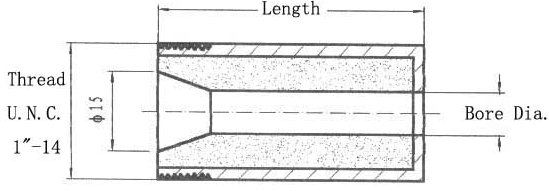

2.Sand Blast Straight Bore Nozzles - 1" Thread
![](http://www.idealspray.com/UploadFiles/20090910092005744.gif)
Part Number |
Bore Diameter |
Length |
HY-18830B |
3.2mm |
54mm |
HY-18840B |
4.8mm |
54mm |
HY-18850B |
6.4mm |
54mm |
HY-18860B |
7.9mm |
54mm |
HY-18870B |
9.5mm |
54mm |
HY-18880B |
11.1mm |
54mm |
HY-18890B |
12.7mm |
54mm |
HY-18831B |
3.2mm |
150mm |
HY-18841B |
4.8mm |
150mm |
HY-18851B |
6.4mm |
150mm |
HY-18861B |
7.9mm |
150mm |
HY-18871B |
9.5mm |
150mm |
HY-18881B |
11.1mm |
150mm |
HY-18891B |
12.7mm |
150mm |
Other specifications are available upon request. Top

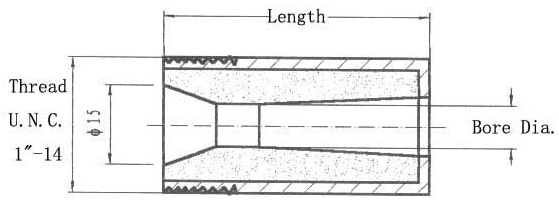

3.Sand Blast Venturi Nozzles - 1" Thread
![](http://www.idealspray.com/UploadFiles/20090910092020460.gif)
Part Number |
Bore Diameter |
Exit |
Length |
HY-17840B |
4.8mm |
7.5mm |
54mm |
HY-17850B |
6.4mm |
9.5mm |
54mm |
HY-17860B |
7.9mm |
11.1mm |
54mm |
HY-17870B |
9.5mm |
12.7mm |
54mm |
HY-17880B |
12.7mm |
15mm |
54mm |
HY-17841B |
4.8mm |
7.5mm |
150mm |
HY-17851B |
6.4mm |
9.5mm |
150mm |
HY-17861B |
7.9mm |
11.1mm |
150mm |
HY-17871B |
9.5mm |
12.7mm |
150mm |
HY-17881B |
12.7mm |
15mm |
150mm |
Other specifications are available upon request. Top

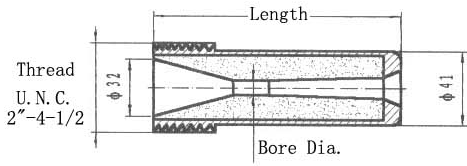

4.Sand Blast Venturi Nozzles - 2" Thread
![](http://www.idealspray.com/UploadFiles/20090910092039876.gif)
Part Number |
Bore Diameter |
Exit |
Length |
HY-16830B |
4.8mm |
9mm |
130mm |
HY-16840B |
6.4mm |
10.5mm |
135mm |
HY-16850B |
7.9mm |
12mm |
140mm |
HY-16860B |
9.5mm |
14mm |
165mm |
HY-16870B |
11.1mm |
15.5mm |
190mm |
HY-16880B |
12.7mm |
17mm |
215mm |
Other specifications are available upon request. Top

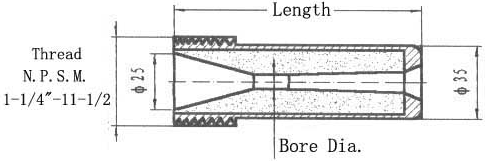

5.Sand Blast Venturi Nozzles - 1-1/4" Thread
![](http://www.idealspray.com/UploadFiles/20090910092056220.gif)
Part Number |
Bore Diameter |
Exit |
Length |
HY-15830B |
4.8mm |
9mm |
130mm |
HY-15840B |
6.4mm |
10.5mm |
135mm |
HY-15850B |
7.9mm |
12mm |
140mm |
HY-15860B |
9.5mm |
14mm |
165mm |
HY-15870B |
11.1mm |
15mm |
190mm |
HY-15880B |
12.7mm |
17mm |
215mm |
Other specifications are available upon request. Top

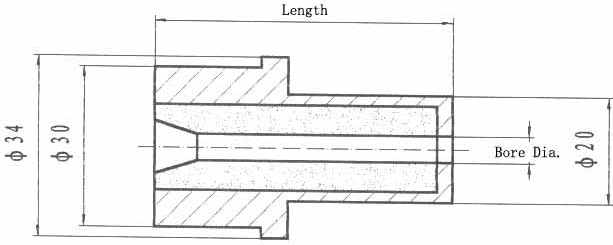

6.Sand Blast Nozzle Holders
![](http://www.idealspray.com/UploadFiles/20090910092108121.gif)
Part Number |
Entrance |
Bore Diameter |
Length |
HY-40042B |
7mm |
3mm |
56mm |
HY-40043B |
8mm |
4mm |
56mm |
HY-40044B |
9mm |
5mm |
56mm |

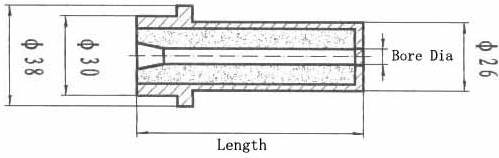

![](http://www.idealspray.com/UploadFiles/20090910092121145.gif)
Part Number |
Entrance |
Bore Diameter |
Length |
HY-40045B |
10mm |
6mm |
85mm |
HY-40046B |
11mm |
7mm |
85mm |
HY-40047B |
12mm |
8mm |
85mm |
HY-40048B |
13mm |
9mm |
85mm |
HY-40049B |
14mm |
10mm |
85mm |
HY-40050B |
15mm |
11mm |
85mm |
HY-40051B |
16mm |
12mm |
85mm |
HY-40052B |
17mm |
13mm |
85mm |
HY-40053B |
18mm |
14mm |
85mm |
HY-40054B |
19mm |
15mm |
85mm |
Other specifications are available upon request. Top

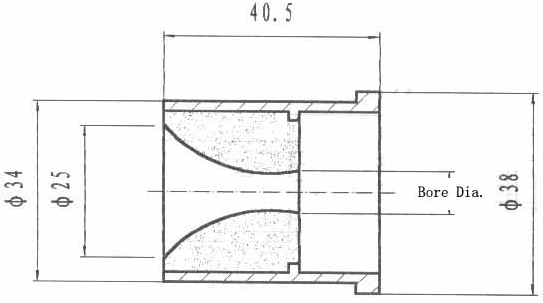

7.Sand Blast Lead-In Nozzle
Part Number |
Bore Diameter |
Length |
HY-40075B |
6mm |
40.5mm |
HY-40077B |
8mm |
40.5mm |
HY-40079B |
10mm |
40.5mm |
HY-40081B |
12mm |
40.5mm |
HY-40083B |
14mm |
40.5mm |
Lead-In nozzle can't be used independently. It should be used with nozzle holders 40042B-40045B. The lead-in nozzle bridges the large diameter difference between hose and nozzle. It leads the abrasive flow into the nozzle orifice and reduce friction loss. So the service life of sandblasting nozzle can be extended if it is used with lead-in nozzle. Top

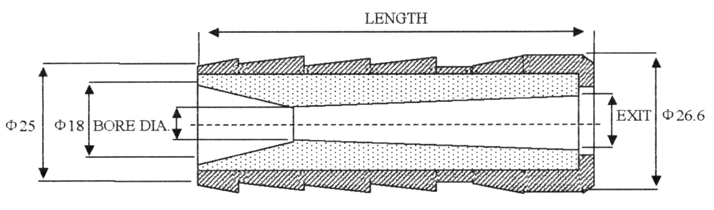

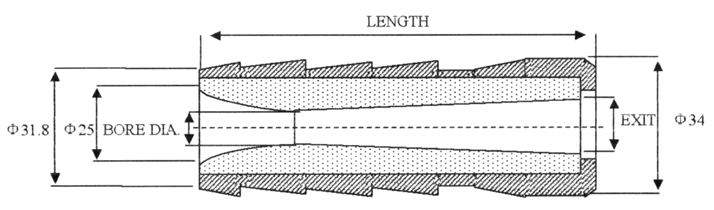

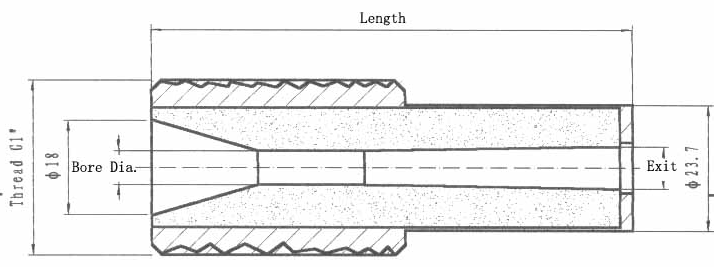

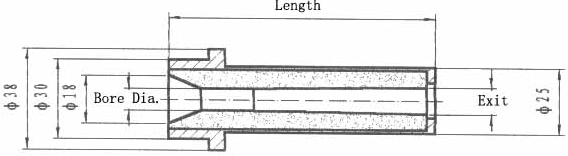

8.Other Sand Blast Nozzles
Part Number |
Bore Diameter |
Exit |
Length |
HY-40094B |
8mm |
10mm |
100mm |
HY-40096B |
10mm |
12mm |
100mm |
Part Number |
Bore Diameter |
Exit |
Length |
HY-40104B |
8mm |
10mm |
110mm |
HY-40106B |
10mm |
12mm |
110mm |
Part Number |
Bore Diameter |
Exit |
Length |
HY-40127B |
6mm |
8mm |
100mm |
HY-40129B |
8mm |
10mm |
100mm |
HY-40131B |
10mm |
12mm |
100mm |
HY-40133B |
12mm |
14mm |
100mm |
HY-40135B |
14mm |
16mm |
100mm |
Part Number |
Bore Diameter |
Exit |
Length |
HY-40186B |
6.4mm |
8mm |
90.5mm |
HY-40188B |
8mm |
13mm |
90.5mm |

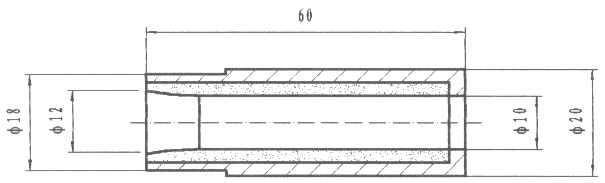

Part Number |
Bore Diameter |
Length |
HY-40416B |
10mm |
60mm |
Part Number |
Bore Diameter |
Length |

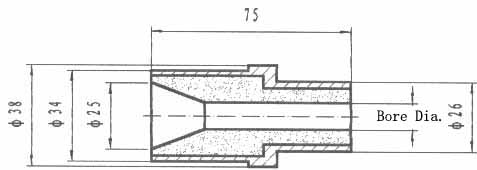

HY-41008B |
10mm |
75mm |
Part Number |
Bore Diameter |
Length |

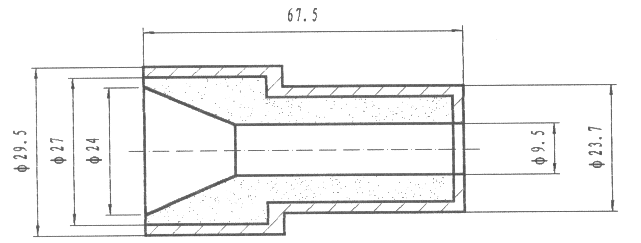

HY-41089B |
9.5mm |
67.5mm |
Part Number |
Bore Diameter |
Length |
HY-41105B |
8mm |
85mm |
Other specifications are available upon request. Top
